Heavy Duty Gantry Crane

Heavy Duty Gantry Crane

Lifting Capacity:	20 ton - 400 ton
Lifting Height:	6 m - 60 m
Span Length:	12 m - 35 m
Working Class:	A5, A6, A7
Ambient Temperature:	-20℃- 60℃

Inquiry Chat Online

Heavy Duty Gantry Crane Introduction

Heavy-duty gantry crane is a large-scale lifting equipment, which consists of two columns and a crossbeam. It has a large load-bearing capacity from 20 ton to 400 ton, and is suitable for occasions where large cargoes need to be lifted and transported quickly and efficiently. Whether in ports, construction sites, outdoor cargo yards, material yards, bulk cargo loading and unloading operations, or manufacturing industries, this gantry crane is an indispensable and important lifting equipment.

Heavy Duty Gantry Crane Specification

 20 ton gantry crane32 ton gantry crane50 ton gantry crane 75 ton gantry crane100 ton gantry crane160 ton gantry crane200 ton gantry crane400 ton gantry crane

Heavy Duty Gantry Crane Component

■ Winch trolley mechanism

The winch trolley travel mechanism consists of four driving wheel boxes. When parking, the brake disc on the brake motor is reset to ensure immediate braking.

■ Outrigger part

The outrigger part is composed of rigid outriggers and flexible outriggers. Each joint is connected by high-strength bolts, which is easy and fast to install and has a firm connection. A row of ladders and an inclined ladder are connected to the outriggers. Operators can use the ladders or inclined ladders to enter the operating cabin, and then use the vertical ladder to reach the walking platform.

■ Operation cabin and electrical control

The operation cabin consists of the operation cabin body and the electric control box. The outside of the operation cabin is welded with steel plates and supported by steel sections and installed in the middle of the main and auxiliary legs of the rigid legs. The front and sides of the cabin are equipped with glass windows with wide fields of view, through which all working conditions in the field can be observed. The electric control box is an independent box installed outside the operation cabin, connected to the hand handle by a control cable, and the hand handle is placed in the operation cabin. When the crane is working, the operator in the operation cabin controls all the actions of the crane through the buttons on the hand handle.

■ Main beam assembly

The main beam assembly consists of the main longitudinal beam, connecting frame, etc. The main longitudinal beam is a double-width triangular honeycomb beam welded from steel plates and steel sections. The beams are connected by steel pins in the middle. The upper part of the beam is equipped with steel rails for the hoisting trolley to travel. The double-width main beams are connected to the connecting frame by bolts to form a whole.

■ Ladder platform assembly

To facilitate the maintenance and repair of the gantry crane, a walking platform for maintenance personnel is installed on one side of the main longitudinal beam. There are guardrails on both sides of the walking platform. Workers can climb the ladder to the walking platform to repair and maintain the machine parts.

■ Hoisting trolley mechanism

The hoisting trolley mechanism consists of a frame, a trolley travel mechanism, a winch and a pulley block. The frame is the load-bearing mechanism of the hoisting trolley, which is welded by the main beam and the cross beam of the hoisting trolley. The frame is connected with the trolley travel mechanism, which consists of two active wheel boxes, each of which is equipped with an active travel wheel and a passive travel wheel. A cycloid pinwheel reducer is installed on the outside of the wheel box, and its structure and working principle are the same as those of the trolley travel mechanism.

Solution of Heavy Duty Gantry Crane

Heavy gantry cranes are often used in ports and docks, steel mills, construction sites, shipyards, power plants and other industrial fields, playing a vital role.

Feature of Heavy Duty Gantry Crane

■Energy saving and environmental protection: heavy duty gantry crane has the characteristics of energy saving and environmental protection, which may be related to its efficient energy utilization and low energy consumption.

■ High reliability: the high reliability of the heavy duty gantry crane means that it can maintain stable and safe performance during long-term and repeated use.

■ High lifting capacity: Heavy-duty gantry cranes are able to withstand and carry very heavy loads, which is an important feature of their design.

■Low maintenance work: due to their reasonable design and use of high-quality materials, heavy-duty gantry cranes usually require less maintenance and upkeep.

■ Easy to implement automated operation: the design of the heavy duty gantry crane allows easy integration of automated systems, thereby improving work efficiency and accuracy.

■ High site utilization: heavy duty gantry cranes have high site utilization, which means they can operate efficiently in limited space.

■ Large operating range: heavy duty gantry crane has a wide operating range and can cover a larger working area.

■ Wide adaptability: heavy duty gantry cranes are suitable for a variety of different working environments and conditions.

Case of Heavy Duty Gantry Crane

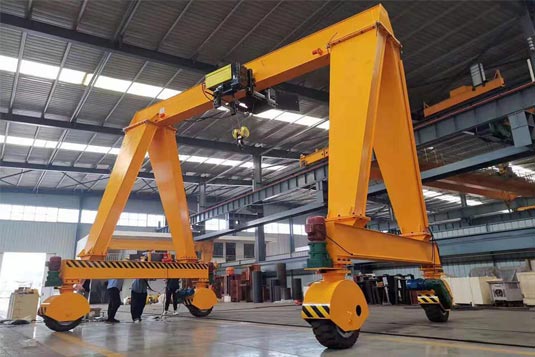

20 ton rubber tire gantry crane for a client from United Arab Emirates

25/10 ton MGO type gantry crane for a client from Kazakhstan

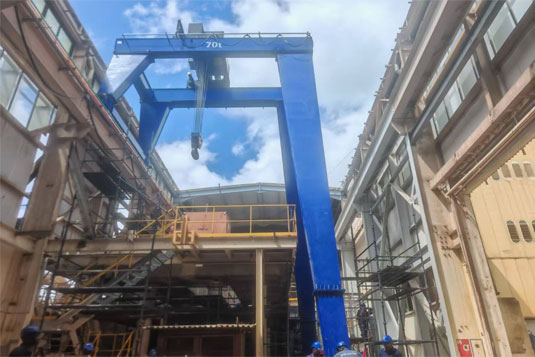

70 ton semi gantry crane for a client from Kenya

110 ton gantry crane for a client from Iraq
