Heavy Duty Overhead Crane

Heavy Duty Overhead Crane

Lifting Capacity:	20 ton - 800 ton
Lifting Height:	6 m - 32 m
Span Length:	10.5 m - 34.5 m
Working Class:	A5, A6, A7
Ambient Temperature:	-20℃- 60℃

Inquiry Chat Online

Heavy Duty Overhead Crane Introduction

Heavy duty overhead cranes refer to lifting and hoisting equipment with a lifting capacity capable of carrying extremely heavy loads, usually overhead cranes with a load capacity from 20 ton to 800 ton. This type of large-tonnage bridge crane is usually applied in port terminals, metallurgy, steel casting, logistics, and other industrial manufacturing that requires high load capacity. It can complete the task of handling and hoisting large-tonnage heavy objects.

Heavy Duty Overhead Crane Specification

20 ton overhead crane32 ton overhead crane40 ton overhead crane50 ton overhead crane75 ton overhead crane100 ton overhead crane125 ton to 320 ton ladle cranes125 ton to 800 ton overhead cranes

Component of Heavy Duty Overhead Crane

■ Bridge frame

This is the main structure of the overhead crane, consisting of main beam, end beam and walkway platform. The main beam spans above the workshop or track and bears the main weight, the end beam provides stability, and the walkway provides a working platform for the operator.

■ Crane trolley traveling mechanism‌

It is responsible for the longitudinal movement of the overhead crane, usually composed of electric motors, reducers, wheels and other components to ensure that the bridge crane moves smoothly along the track.

■ Winch trolley

It is designed for horizontal movement, carrying hooks or other lifting equipment, moving along the bridge rails to complete precise lifting operations.

■ Lifting mechanism

It includes motor, reducer, drum and hook, responsible for lifting operation.

■ ‌Control system‌

Modern large-tonnage overhead cranes are usually equipped with advanced control systems, including anti-drowsiness, anti-slip systems, video monitoring and assisted driving systems to ensure safe and efficient operation.

Solution of Heavy Duty Gantry Crane

Heavy duty overhead cranes are often used in steel industry, mining industry, oil and gas, energy industry, paper manufacturing, automobile indutry, etc.

Feature of Heavy Duty Overhead Crane

■ Strong carrying capacity: large-tonnage overhead cranes can easily carry 20 tons or even hundreds of tons of heavy objects to meet the needs of large-scale engineering projects.

■ Safe and reliable: equipped with a variety of safety protection devices, such as limit switches, buffers, overload limiters, safety ropes, etc., to ensure safety during operation.

■ Stable structure: The overhead crane frame is made of high-strength steel and has undergone strict calculations and tests to ensure that it remains stable under heavy loads.

■ A wide variety of types of overhead cranes, suitable for different manufacturing and industrial application environments.

■ According to the frequency of use, it is divided into three working levels: A5, A6 and A7.

■ Flexible operation: The overhead crane operating mechanism is well designed, which enables the overhead crane to move quickly and smoothly on the track, improving operating efficiency.

■ The main and auxiliary double hook overhead crane has strong lifting capacity and great flexibility.

Case of Heavy Duty Overhead Crane

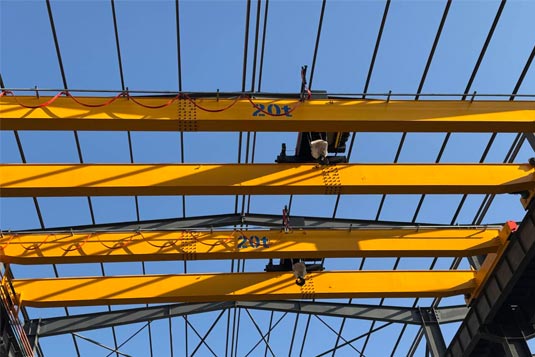

20 ton QDX type overhead cranes for a client from Uzbekistan

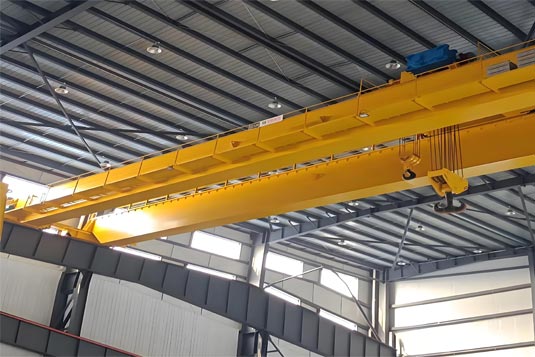

50/10 ton QDX type overhead cranes for a client from Uzbekistan

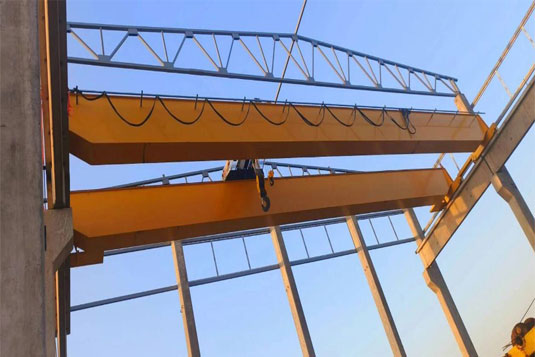

80 ton QDX type Overhead Crane for client from Zambia

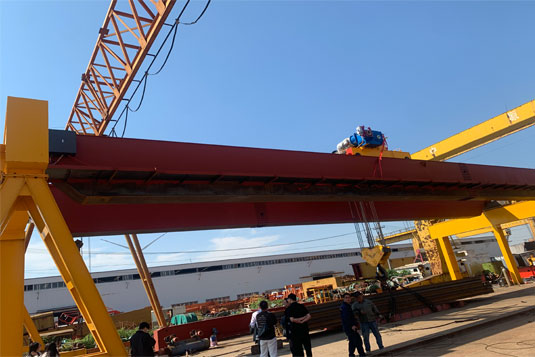

100 ton QDX overhead crane test in factory for a client from Pakistan

...
