Stage Hoist of DJCRANE

Stage Hoist

Lifting Capacity:	0.25 ton to 3 ton
Lifting Height:	≥10 m
Lifting Speed:	2m/min to 16m/min
Working Class:	M3
Ambient Temperature:	-20℃ to 40℃

Inquiry Chat Online

Stage Hoist Introduction

Stage hoist is a kind of small and special lifting equipment of electric chain hoist, which is divided into mobile performance inverted stage electric hoist and engineering special upright stage electric hoist.

The inverted stage electric hoist is mostly used for mobile performances, large concerts, TV studios, etc., and it is campact and light, easy to transport and install.

The upright stage electric hoist is mostly used for fixed lifting, large conference centers, theaters, banquet halls, etc., with good stability, high safety factor.

Henan Dejun Industrial Co., Ltd  can customize CNC products of various specifications and CNC systems of various requirements to meet the use requirements of different environments and scenes.

Technical data of Stage Hoists

The stage electric hoist specifications are presented as following for your reference.

Applications of Stage Hoist

Stage hoist is widely used in various concerts, studios, large conference centers, theaters, banquet halls, etc

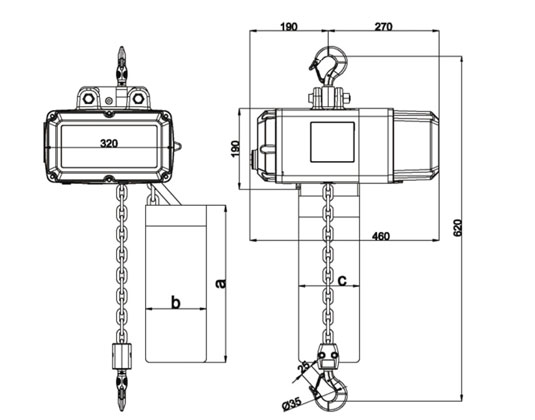

Stage hoist drawing

Advantages of Stage Hoist

■   Small structure and light weight, easy to transport and install

■   Good stability, high safety factor

■   Overall protection level：IP66, IP65, IP55

■   High efficiency and long work life

■   The hook can rotate 360 degrees, with anti-unhooking design

■   Electromagnetic brake, brake locks immediately when power is off, safe and reliable

■   Stage hoist shell is made of high-strength aluminum alloy die-casting, corrosion-resistant, not easy to rust, high sealing, can adapt to the requirements of harsh environment work

Features of Stage Hoist

The main features of stage hoist is as follow:

Motor

■   Small size, high starting torque, able to meet high-frequency continuous operation

■   Insulation grade F, equipped with motor overheat protection device

Transmission gear set

■   Gear precision level 6, silent and safe operation

■   Gear box adopts full oil valley lubrication, after sealing, it can achieve lifelong maintenance-free, has temperature regulation function, long life

Chain

G100 grade chain, 8 times safety factor alloy steel lifting chain fully complies with German standards and European 818-7 standards.

Clutch

The clutch is fully imported wet clutch friction plate, with overload protection function, as well as anti-top, lifelong maintenance-free design.

Limit Switch

Precise electronic limit switch can adjust the electric hoist stroke and prevent top impact to ensure safe operation.

Control System

■  High-end digital control system, all control options are concentrated on the LCD touch screen and displayed digitally.

■  The controller can independently control the lifting of one or more stage hoists, and can group each point with a name and remark, saving the tedious operation of looking up the layout drawings.

■  Ergonomically designed LCD operating table, exquisite appearance and simple operation

■  The operating table and the integrated circuit cabinet are designed to be separated and connected by a signal line, which increases the convenience and flexibility of operation (the longest theoretical distance of the signal line is 200 meters).

■  The handheld operating table is equipped with a rocker-type operating lever. Stage hoists can only be powered on when it is pushed up or pulled down. When not in operation, the rocker resets to the middle and stops sending action signals to the operating system, increasing the controllability and safety of the operation.

■  The operating console is equipped with an emergency stop button, which can cut off the control system and power supply in an emergency to avoid safety accidents.

Stage Hoist Video

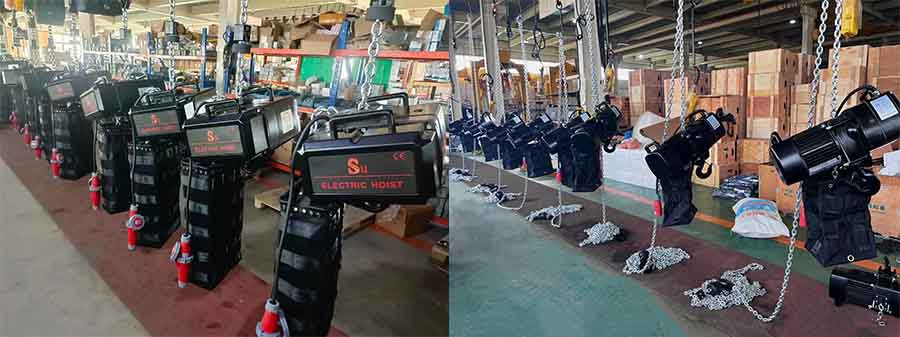

Stage Hoist in Workshop
